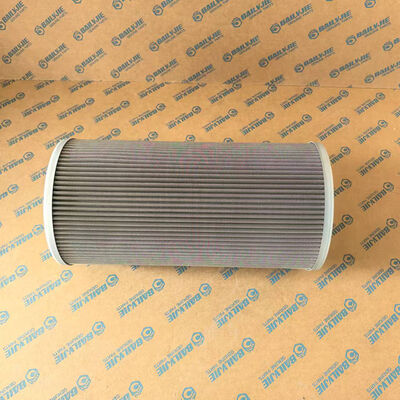

Manufacturer Supply Industrial Replacement Filters Hydraulic Return High Pressure Filter 925 Hydraulic Filter Element 53C0002

Manufacturer Supply Industrial Replacement Filters Hydraulic Return High Pressure Filter 925 Hydraulic Filter Element 53C0002

Product Description:

In hydraulic systems, hydraulic oil serves not only as a medium for transmitting power but also undertakes multiple tasks such as lubrication, cooling, and rust prevention. As a crucial component ensuring system cleanliness, the importance of the hydraulic return oil filter cannot be overstated. This article will elaborate on the core selling points and performance characteristics of the hydraulic return oil filter, helping users understand its value.

The core selling point of the hydraulic return oil filter is to safeguard system health. It is installed in the oil tank return line and can efficiently filter the hydraulic oil returning to the oil tank from the actuating components (such as cylinders and motors), removing particulate contaminants, metal debris, and wear products. This effectively prevents secondary pollution, protects precision components (such as pumps and valves) from wear and seizure, significantly extends the service life of the entire hydraulic system, and reduces the frequency of downtime for maintenance.

Features:

High-precision filtration: The precision is typically between 1-40μm, with a common range of 5-20μm. The fiberglass material has a βx≥200, with a filtration efficiency of over 99.5%. The stainless steel mesh filter can be reused after cleaning.

Low pressure loss and large flow capacity: The initial pressure loss is usually ≤0.08MPa, with a large flow capacity and a flow range covering from 25L/min to 1300L/min, suitable for various equipment.

Strong environmental resistance: Stainless steel can withstand extreme temperatures ranging from -10℃ to +100℃, boasts high pressure-bearing capacity, and can endure pressure differences up to 21MPa.

Robust and durable structure: It possesses extremely high axial and radial stiffness, capable of withstanding pulsations and hydraulic shocks in the return oil circuit without deforming.

Safety redundancy design: Equipped with a bypass valve (opening pressure approximately 0.4 MPa) and a differential pressure transmitter (alarm pressure approximately 0.35 MPa). When the filter element becomes clogged, the transmitter will first trigger an alarm. If it is not replaced in time, the bypass valve will open to protect the system.

Convenient and quick maintenance: The direct return design makes replacing the filter element as simple as changing a screw cap. Some dual-cylinder models also allow for filter element replacement without stopping the machine. At the same time, the bottom diffuser design enables smooth oil return, avoiding the generation of bubbles and agitating sediment at the bottom of the oil tank
