| MOQ: | 1000 pieces |
| Price: | $ 8.6 - 24 |
| Payment Terms: | T/T, PayPal, Xtransfer |
| Supply Ability: | 50000 pieces per day |

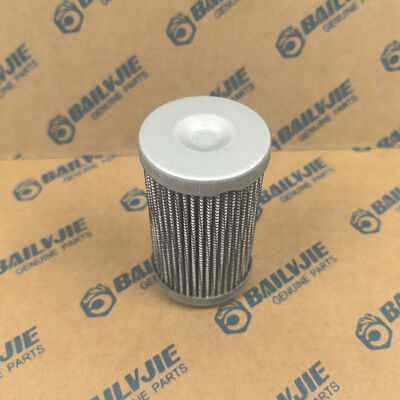

Hydraulic Pilot Filter Element A222100000119 Engineering Machinery Pilot Filter Element
Hydraulic pilot hydraulic oil filter is widely used in various hydraulic systems that require precise control and high reliability, such as construction machinery, injection molding machines, die-casting machines, CNC machine tools, etc. These devices have extremely high requirements for the cleanliness of hydraulic oil, and any slight contamination can lead to performance degradation or malfunction. Therefore, selecting the appropriate hydraulic pilot oil filter element is crucial for ensuring the normal operation of the equipment.
When selecting a hydraulic pilot hydraulic oil filter element, multiple factors need to be considered, including filtration accuracy, filtration area, operating temperature, acid and alkali resistance, etc. The filtration accuracy determines the particle size that the filter can intercept, usually expressed in micrometers (μ m), with smaller values indicating finer filtration. The filtration area affects the flow rate and lifespan of the filter element, and a larger filtration area can provide greater flow rate and longer service life. The working temperature and acid alkali resistance determine the applicability of the filter element in specific environments.
1. The pilot control system has extremely high requirements for oil cleanliness, so the filtration accuracy of the pilot filter element is usually between 3-10 μ m, and some precision applications even require 1-3 μ m, which is much higher than that of ordinary hydraulic return oil or suction filter elements to prevent particles from sticking to the precision valve core.
2. The pilot filter element is often installed in high-pressure pipelines and needs to withstand high system pressure (up to 21-35 MPa) and large pressure differentials. Some products are designed to withstand extreme pressure differentials of 42 MPa to ensure that they do not deform or break under high loads
3. Adopting high-strength skeleton (such as stainless steel mesh or 3D printed honeycomb matrix) and high-quality filter materials (such as glass fiber, synthetic fiber), with good axial stiffness and flattening stiffness, it is not easy to deform or collapse under impact load or alternating pressure, ensuring stable filtration accuracy
4. To avoid affecting the response speed of the pilot oil circuit, the filter element adopts a corrugated folding structure (usually with a pleat height of ≤ 20 mm) to increase the filtering area and reduce flow resistance. The initial pressure difference of some products can be controlled below 15 psi (about 0.1 MPa) to ensure rapid system response
5. The working temperature range is generally from -30 ℃ to+110 ℃, and some high-performance filter elements can withstand a high temperature of 135 ℃ for a short time, and are well compatible with commonly used hydraulic oils, phosphate hydraulic oils, water ethylene glycol and other media
|
Item Name:
|
Hydraulic oil filter element
|
|
Dimension:
|
Standard size;Custom size is available
|
|
Materials:
|
Filter Paper, Metal, Rubber Gasket, O-Ring; etc
|
|
Efficiency:
|
97%
|
|
Sample/Stock:
|
Available
|
|
Certification:
|
ISO9001/TS 16949:2009,
|
|
Packaging:
|
FUBUSI Packing; Neutral Packing, Customer's Demand
|
|
Application:
|
For Truck or Other Diesel Replacement, Construction Machinery
|
Q1.Do you have MOQ?
Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.
Q2.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee. If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express. If you do not request,I will choose a cheap one in China.
Q3.How about the after sale service?
1)We will always keep the quality the same as the buyer's samples and if there is something with the quality,we will make compensation for our customers.
2)We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling,we will solve the problems in the selling for our customers.
Q4.When can I get a price?
We usually quote within 24 hours after we get your inquiry.
Q5: What are the materials of the filter element? What are the corresponding accuracy ranges?
According to the classification of filter materials, there are: oil filter paper: 10-50um, glass fiber: 1-70um, HV glass fiber: 3-40um, metal mesh: 3-500um, sintered felt: 5-70um, and line gap filter: 15-200um.
Q6: What brands of filter cartridges do you make?
Our factory produces alternative universal filter elements for foreign brands such as Pall, Hedek, Dasheng, Parker, and Rexroth, as well as national standard oil suction filter elements, oil return filter elements, high-pressure filter elements, and coalescence dehydration filter elements. We support non-standard customization. We welcome samples or drawings for processing and customization.
Q7: How can customers choose the appropriate filter size when making their own filters?
We need to provide the flow rate, pressure, external dimensions, accuracy, filter medium and other parameters of the filter designed by the customer. We will provide the customer with the selected filter element size and quantity based on the filter size.
Q8: Is there any difference between filtering kerosene, gasoline, diesel filters and general hydraulic oil filters?
The sealing materials used in the filter element are different. Generally, the sealing ring of hydraulic oil filter element is nitrile rubber, while filtering media such as kerosene, gasoline, and diesel requires the use of fluorine rubber rings.
